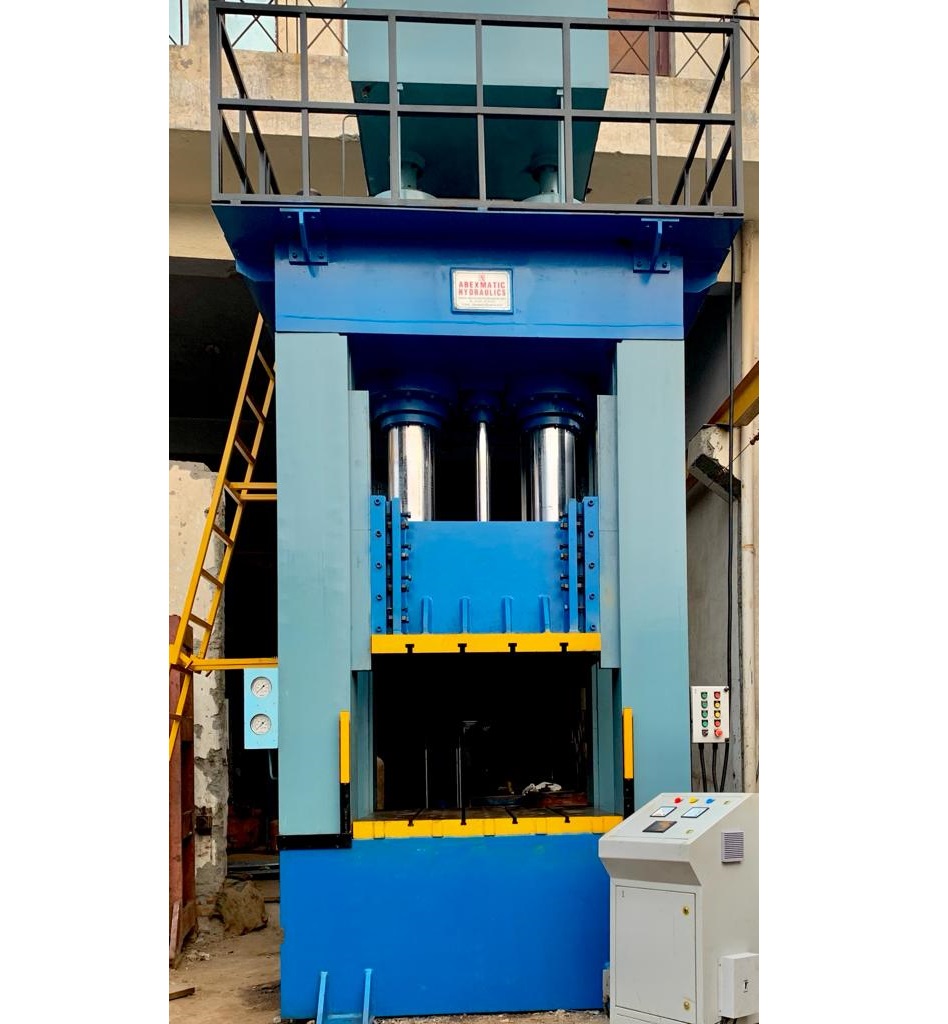

Deep Drawing Hydraulic Press

These Deep Drawing Hydraulic Presses are specially designed for best performance. These machines are equipped with PLC and L.V.D.T depth control. Being highly rigid, compact and space saving in design, these machines are widely used in manufacturing of S.S sinks, L.P.G cylinders, Geysers, A.C., cooking hobs and other automobile & industrial sheet metal components

Features

Specially designed for deep-drawing and punching, these machines can handle tough processing that can't be done mechanically. The highprecision design makes them safe and dependable.
Push-bottom controls and Logical hydraulic circuit design make our presses simple to operate and easy to maintain.
Longer power stroke and die cushion device gives you the power you need for the most complicated jobs.
The forced lubrication system keeps sliding surfaces in excellent condition and parts moving smoothly and freely.

MODEL		ABXD-400	ABXD-500	ABXD-600	ABXD-800	ABXD-1000	ABXD-1200	ABXD-1500
Pressing capacity	TON	400	500	600	800	1000	1200	1500
Pull-out capacity	TON	30	40	50	60	80	80	100
Working Table area LR x FB	mm	600X800	650X800	750X900	900X1250	950X1400	1000X1500	1100X1800
Stroke	mm	400	450	500	600	600	700	800
Daylight opening	mm	1150	1200	1250	1300	1300	1400	1400
Decending speed	mm/sec	200	200	200	175	175	175	150
Pressing speed	mm/sec	10 to 15	10 to 15	10 to 15	10 to 15	10 to 15	10 to 15	10 to 15
Ascending speed	mm/sec	200	200	200	180	180	180	160
Die Cushion Capacity	TON	160	200	240	320	400	480	600
Cushion stroke	mm	40	50	60	75	75	90	100
Motor	HP	50	60	60	75	100	125	150

Design & Specification shown here are indicative & are subject to change without prior notice
