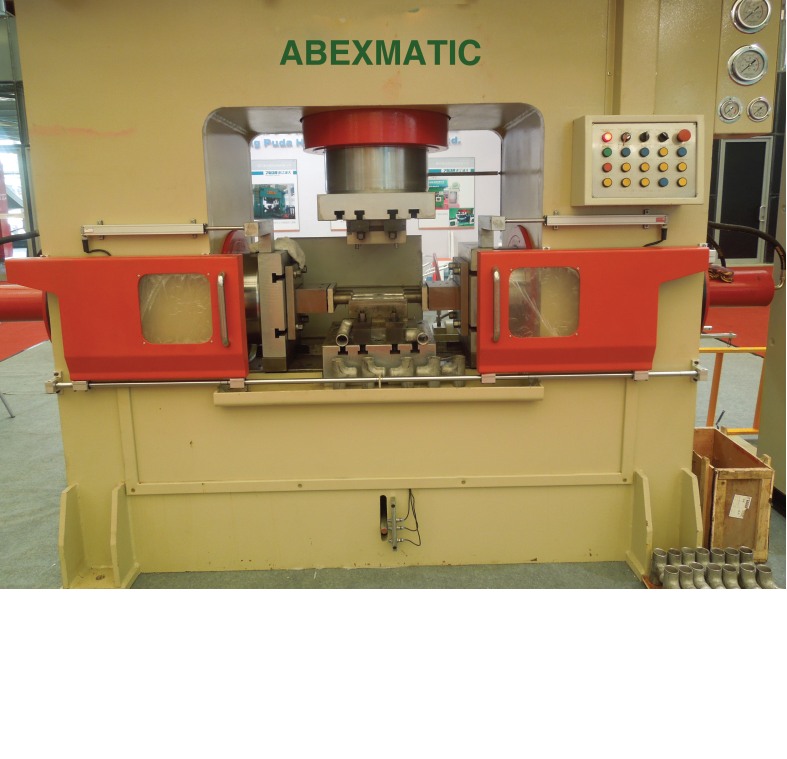

Tee Cold Forming Machine

These Tee cold forming machines are designed for manufacturing stainless steel, carbon steel & alloy steel tee with curvature of 1D to 1.5D the products are widely used in the connec􀀬on of the industrial pipe lines for patro chemical, gas, , oil pipes, electrical power, food industries.

Main Features

These are constructed with strong metal frame with good appearance & stable functioning
These machines have individual power construc􀀬on & electrical system, adopts PLC control & programmed touch screen opera􀀬on system which can be operated manually & automacally

MODEL		ABTF-600	ABTF-800	ABTF-1200	ABTF-2000
Main capacity	TON	600	800	1200	2000
Forming capacity	TEE	1/2"~4"	1/2"~6"	4"~8"	6"~12"
Main stroke	mm	400	500	600	900
Table area LR x FB	mm	650x900	750x1000	850x1150	1100x1600
Transverse press	TON	450x2	600x2	800x2	1600x2
Transverse stroke	mm	200	200	250	400
Cushion capacity	TON	100	150	200	300
Cushion stroke	mm	150	200	250	350
System pressure	kg/cm²	250	250	250	250
Oil tank capacity	L	1500	1800	2200	3000
Motor	HP	100	150	200	300
Intensifier pressure	kg/cm²	2500	2500	2000	2000

Design & Specification shown here are indicative & are subject to change without prior notice
