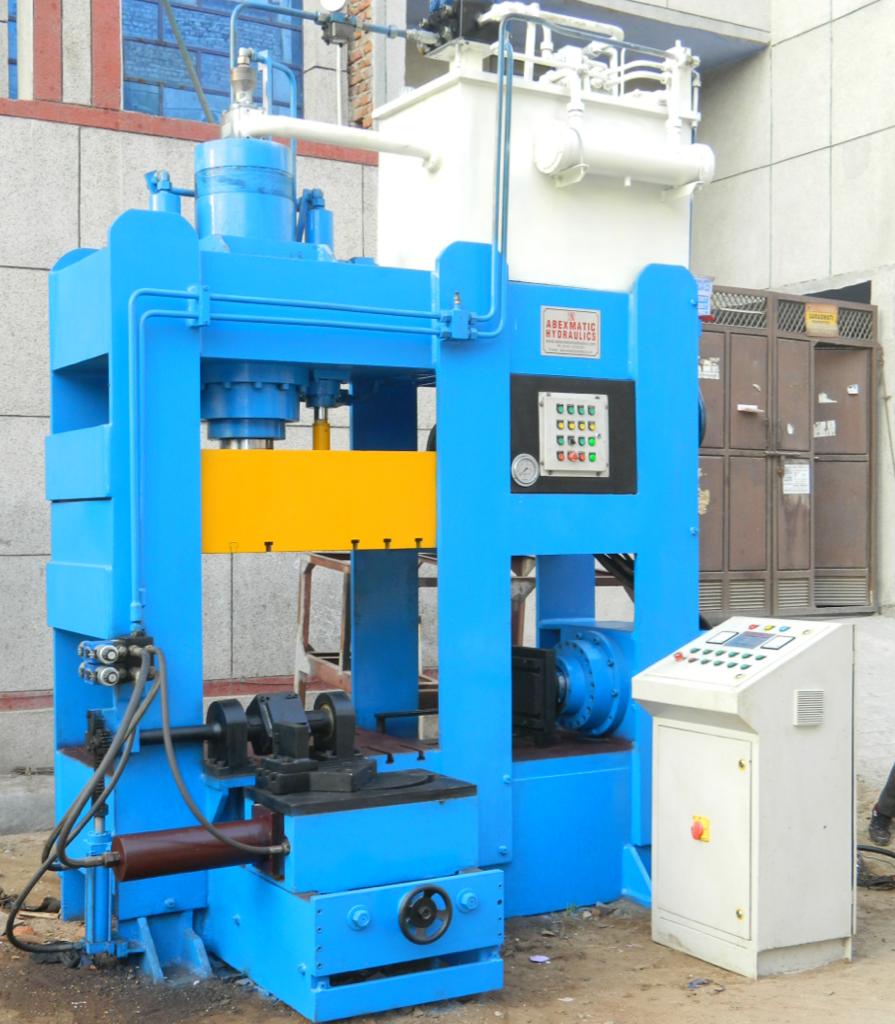

This series of Stainless Steel Elbow Forming Machine is used for cold push forming. Elbow fittings are mainly used for industrial pipe connection fittings, such as petrochemical industry, pharmaceutical manufacturing, oil and gas transportation, electricity and food. Adopting different molds to produce different standard pipe fittings, such as National Standard, American Standard and Japanese Standard etc.
| Model | ABEF 120 | ABEF200 | ABEF315 | ABEF350 | ABEF900 | ABEF1500 | |
|---|---|---|---|---|---|---|---|
| Description | Unit | ||||||
| Size Range | Inch | 1/2 "- 4" | 2"-6" | 4"-8" | 5"-10" | 8"-16" | 12"-20" |
| Thickness | SCH | 5s-120 | 10s-100s | 10s -100s | 10s-80s | 20s-80s | 20s-60s |
| Max Locking Force | Ton | 120 | 200 | 315 | 350 | 900 | 1500 |
| Max Forming Force | Ton | 100 | 150 | 200 | 250 | 560 | 630 |
| Processing Speed | sec/pc | 30-60 | 40-80 | 60-100 | 70-120 | 180-360 | 300-600 |
| General Power | KW | 10 | 22 | 30 | 37 | 45 | 60 |
Design & Specification shown here are indicative & are subject to change without prior notice
